SPECIFICATIONS

• Standard Material: Silicone Rubber

• Other materials are available (EPDM, Neoprene ). Consult factory for more information)

• Standard Color: Clear Optional colors available for easy identification (See chart for colors. Consult factory for

    special color runs)

• Withstands intermittent temperatures of up to 600°F (316°C)

• Reusable

• Can also be used to plug threadedand non-threaded holes

• Special lengths available on many of the sizes

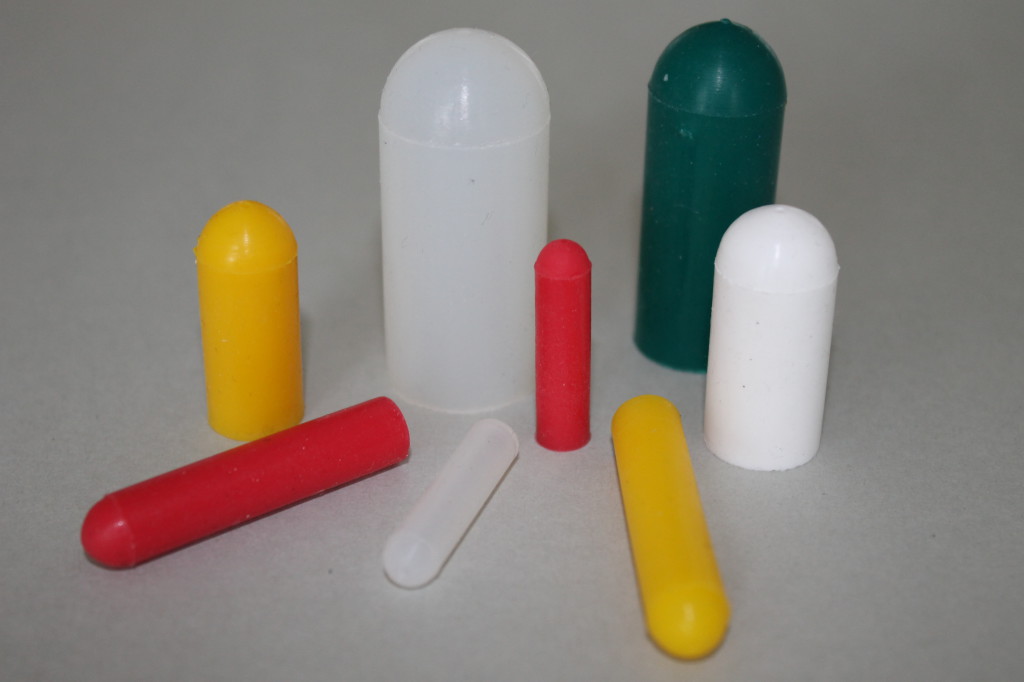

SC Series – Perfect products for almost any high temperature masking application, including



E-Coating, Powder Coating and Plating process.







All dimensions in mm

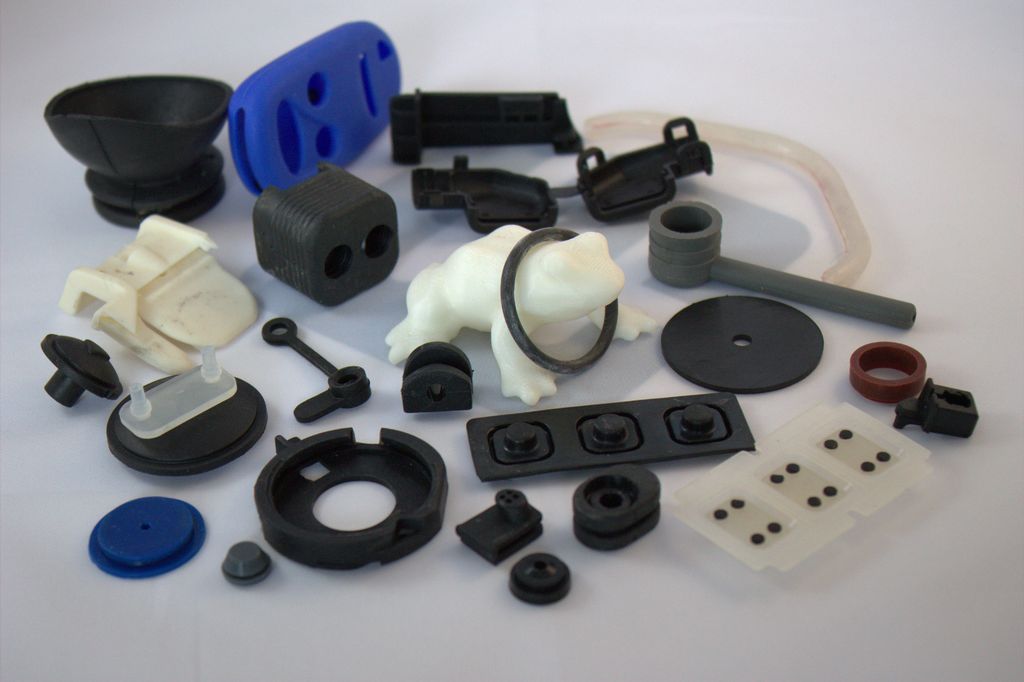

Molded rubber parts and plastic moldings

We manufacture high-quality technical rubber –., and plastic molded parts according to your specifications for a wide range of applications. Depending on your needs, we manufacture from a variety of rubber and plastic material. Custom Design takes due to our low cost tooling costs, flexibility, quality, short-term realization of failure samples, production tools and timely delivery is becoming increasingly important and is now an essential part of our business.

You want cost savings and not compromise on quality, service and delivery, then please contact us.

Manufacturing elastomers:

Silicone, Viton FKM, Fursilicone, Neporene, EPDM, Nictrile, SBR, butyl IR, PE CSM, Etyhylene Acrylic AEM, Urethanes, Polyacylate, LSR, Buyth, Santaprene, , HNRR

Manufacturing plastics:

PE, PP, PVC, PS, PC, ABS, Nylon (PA), POM

We manufacture:

Bellows, seals, hoses, Rundschnuere, profiles, o-rings, grommets, grommets, masking products, caps, Abdeckstpfen,
Spacers, bushings, connectors, oil & dust seals, diaphragms, rubber to metal bonding,
Handles, Conductive rubber parts, vibration insulation, tubing sections,
Other complex forms

Method:

Compression method, transfer method, transfer molding, injection molding, extrusion

Our customers:

Machinery, automotive, electrical, medical, wire –. & cable industry, powder coaters, coating, plating  ………………………………………

Please contact us for your new application

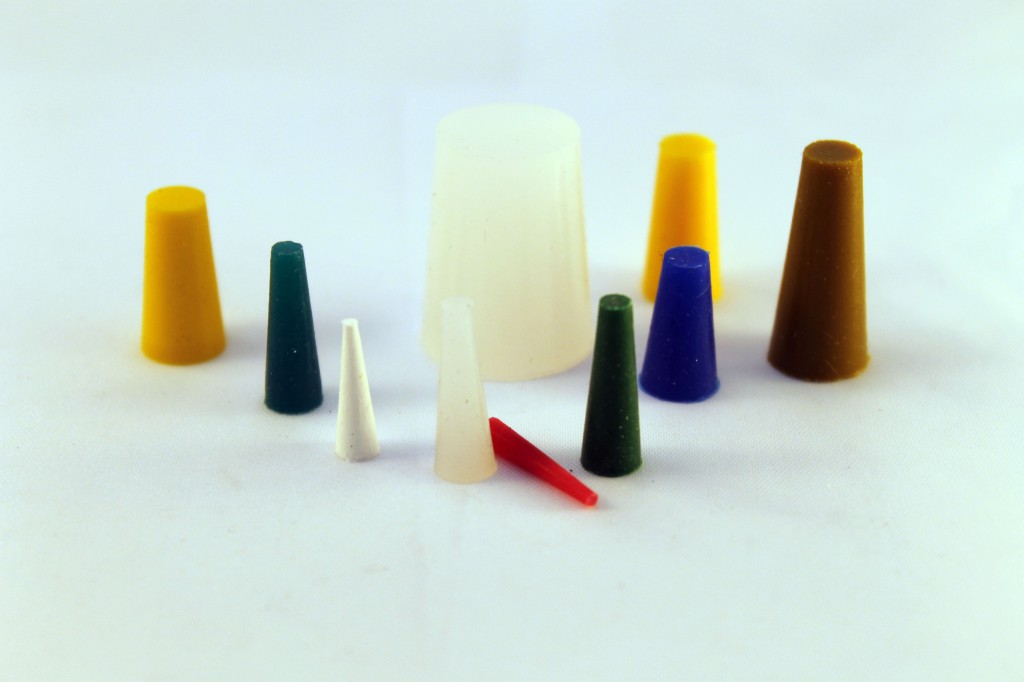

Konische Silikon Stopfen / Cone Silicone Plug   STP-Serie

We can delivery following materials:

• Silicone Rubber        = STP-xxxx-xxxx
• EPDM                         = ETP-xxxx-xxxx
• Neopren                      = NTP-xxxx-xxxx



• Tapered to fit a variety of hole diameters
• Compressible for better sealling of both threaded and non-threaded holes
• Ideal for sand blasting
• excellent chemical and hydrocarbon resistance







Typical Applications:

Used as a plug in both threaded and non-threaded holes and in combination with hardware to seal off large cavities.

Helpful Hints:

• Make sure that the major diameter of the plug is at least 15% larger than the hole diameter. The minor diameter should be at least 15% smaller than the hole diameter.
• Silicone Cone Plugs ( max 315°C )  are not recommended for prolonged exposure to intense heat.

Product Description:

Our Silicone Cone Plug product line is an economical substitute for our ETP product line for general plugging applications. With many sizes available, holes from 1,60 mm to 88,4 mm in diameter can easily be plugged. Our high temperature Silicone is specially formulated to resist chemical attack and ensure reusability and economy during masking.



All dimension in mm



Standard color ist clear / transluzenz , other color by request

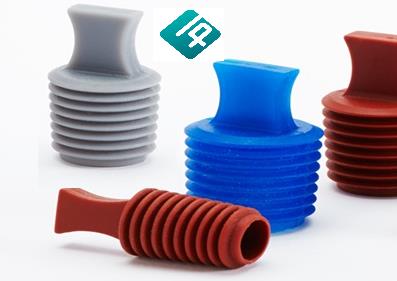

Flanschlose Stopfen   / Flangeless Plug   – FP-Series

Material Silicone  (316°C ) = SFP  & EPDM ( 177°C) = EFP

Flangeless Plug (SFP or EFP) product line is specifically designed to mask threaded holes, including the top thread, without masking the surrounding area. The tapered ribs and hollow core allow for many different size holes to be masked, regardless of the thread pitch. Imitation plugs have rounded ribs that do not offer the same degree of protection as Elfeplastic line. Made of a rugged blend of our High Temperature Silicone the SFP has excellent sealing characteristics and reusability.Tapered ribs and hollow core allow for masking of multiple sizes of holes. Sharp rib profile offers excellent chamfer coverage. Specially Formulated to be rigid. Allowing plug to be pushed into place.

Typical Applications:

• Used as a plug for threaded holes, including the top thread.

Helpful Hints:

• Silicone Flangeless Plugs are designed to be inserted via direct pressure. Elfeplastic does not recommend threading these plugs into place, as threading may cause damage to the plug and difficulty during removal.
• Due to the low tear resistance of Silicone, do not use tools (such as pliers) to remove plugs.



All dinension in mm

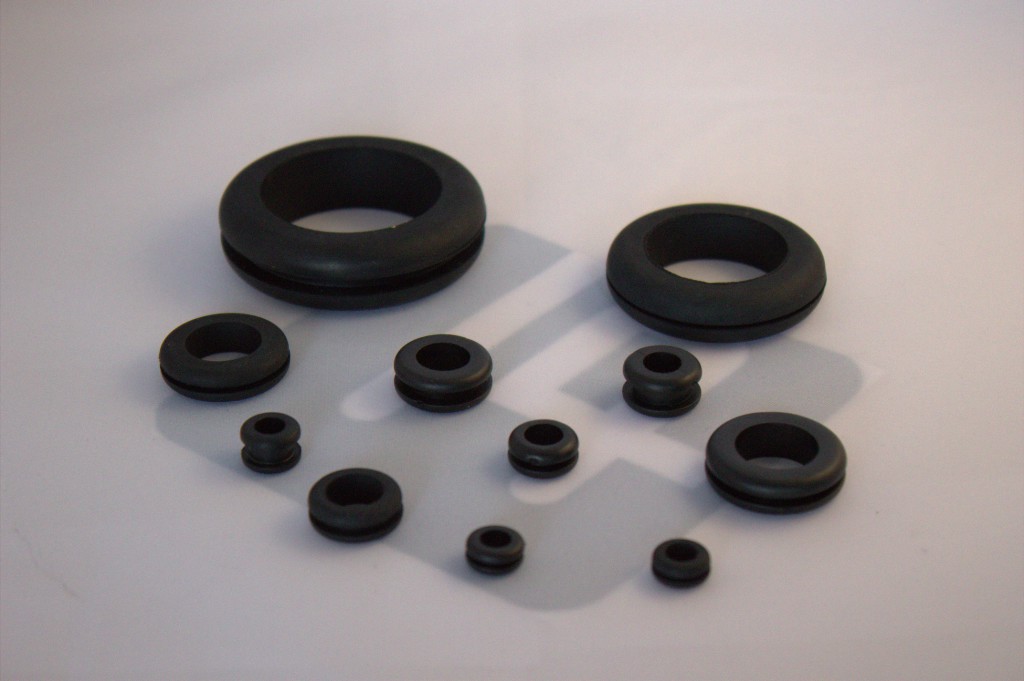

These grommets protect wires and cables, which are guided by plates

EPDM – heat-resistant materials for use in extreme temperatures -40 ˚ C to 125 ˚ C



All Dimension in mm

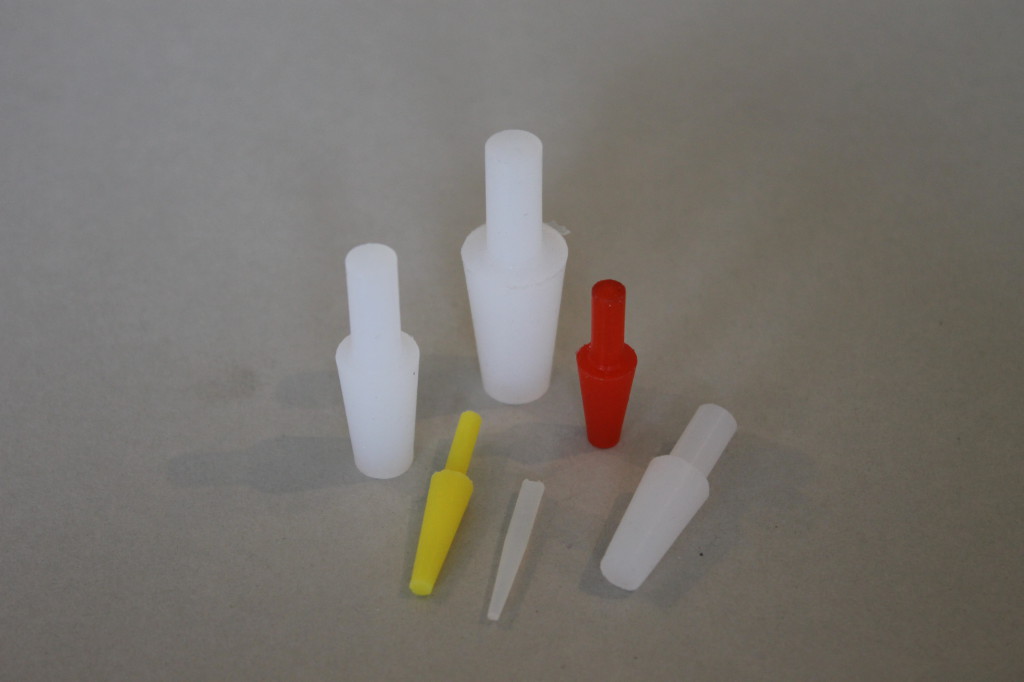

Konische Ziehstopfen  / Cone Pull Plug – TPH Serie

Material: Silicone Rubber (STPH) & EPDM  ( ESTPH)





















All Dimension in mm

Many item and selection  in the Masking Sample Kit box.

*Article Dimensions and quantities may vary slightly

1. Silicone Caps – SC-Serie

in Kit box =  22 different dimension parts  > 417 pieces

2. EPDM caps – EC-Serie

in Kit box =  22 different dimension parts  > 417 pieces

3. Silicone Cone Plugs – STP-Serie

in Kit box =  24 different dimension parts  > 743 pieces >> from M2 toM56 <<

4. EPDM Cone Plugs – ETP-Serie

in Kit box =  24 different dimension parts  > 721 pieces

5. Silicone Pull Plugs – SPP-Serie

currently not available

in Kit box =  15 different dimension parts  > 358 pieces

6. Silicone Flangeless Plugs   – SFP-Serie

in Kit box =  12 different dimension parts  > 191  pieces



Masking Sample Kit are only for sale, not as free samples

Round Foam Silicone Cords (Metric System)



Ideal for applications requiring exposure to extreme temperatures (-40°C to +200°C). Our silicones round foam cords also have excellent ozone/radiation resistance,

UV resistance and arc/corona resistance and are closed cell.

These properties are maintained well at high and low temperatures







Technical Properties (Summary)

 Material:                                           Silicone Foam

Colour:                                              White

Density (specific gravity):             250±40 Rg/m³**

Shore Hardness:                             45±5 (Shore ’00’) <5 (Shore ‘A’)*

Tensile Strength                               0.75 N/mm²

Elongation at Break:                         100%

Min. Temperature:                          -40°C

Max. Temperature:                         +200°C

Compression Set (22hr @ 70°C): 15%

* Shore hardness values only given for guide comparison to solid materials and is not designed to be

used as technical specification.

** Density measured on 25mm cord sample

Size:   For details on custom size strip / gasket with self-adhesive backing please call.





All dimensions in mm

We produce Rubber Grip, Vinyl Grips and 2K  grips only for  customer design and drawings.



Please ontact us.

Vinyl Dip Moulding Caps / PVC Tauchkappen

PVC/ w  Hardness: about. 65°, 70° or 85° Shore A

Standard Color: yellow, blue, gray, white, red, green, black. Other colors on request.

Usual tolerances: internal length of 1,5 – 2 mm – wall thickness of + / – 0.3 mm





100% Phthalate Free

Our material is available in black, yellow, red and green fluorescent standard phthalate-free .  All individual ingredients is FDA confirm.



Immersion lengths in mm increments possible.



For requesting and samples please give  your desired length.
