Seal Plug – SP

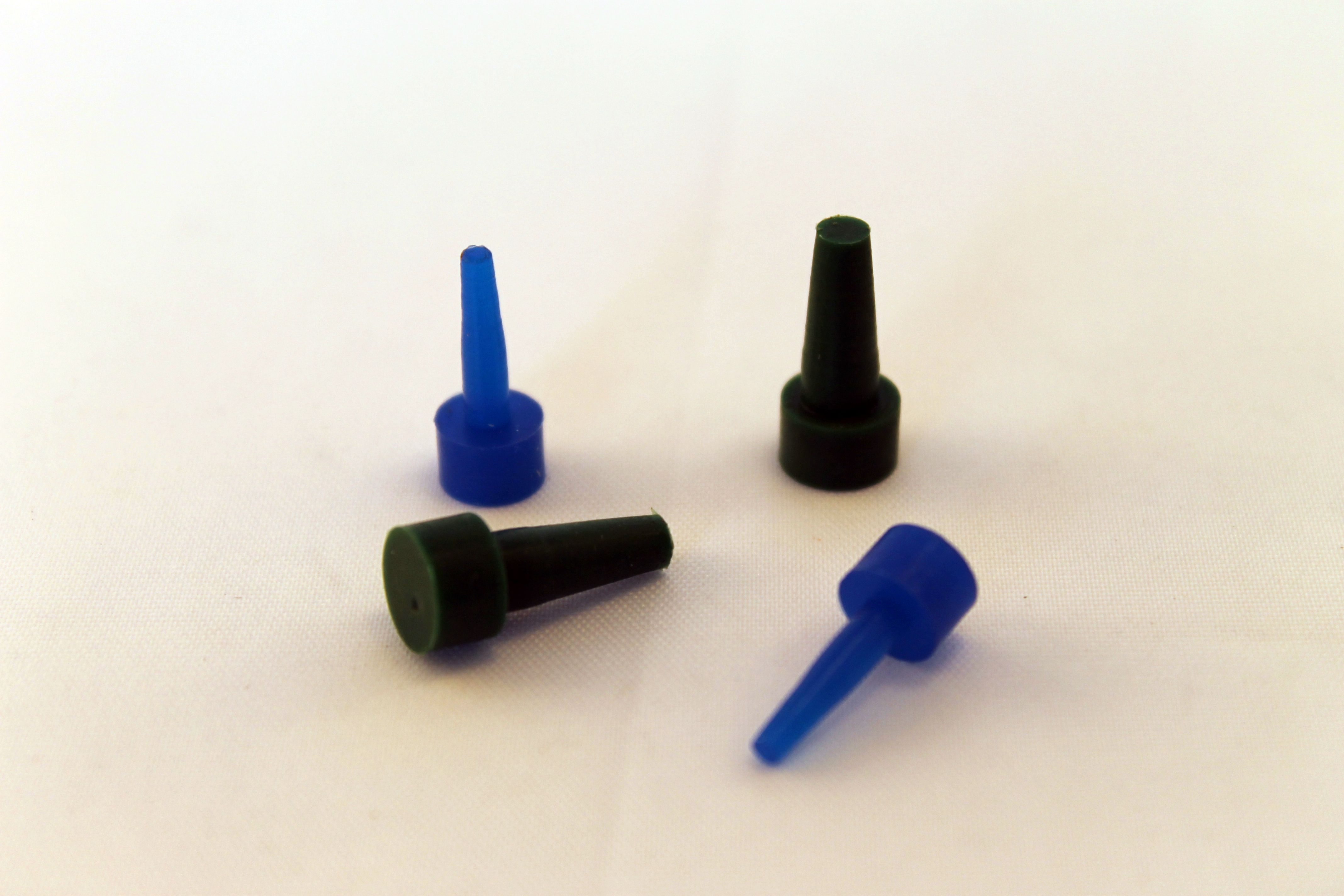

Dichtungsstopfen / Seal Plug   SP-Series

Material Silicone Rubber  (316°C) = SSP  & EPDM (177°C) = ESP



For the protection of holes when a painted surface is desired in the transition. Very good chemical and acid resistance, to use several times the material hardens without it. Also available in color coding, other dimensions on request.



20-ZG-Dichtungsstopfen_SP



All Dimension in mm

Get a sample or offer

Part No. A B D E Shore A PCS/BAG
SP-M3 7,01 3 7,01 13 55 500
SP-0118 7 3 4,9 12,7 55 500
SP-M4 8 5 8 14 55 500
SP-0311 7,9 5,1 4,9 12,7 55 500
SP-0201 11 5,1 4,7 9,8 55 500
SP-M5 8,99 5,99 8,99 16,03 55 500
SP-0244 8,89 6,2 5 12,7 55 500
SP-0256 10 6,5 4,9 12,7 55 500
SP-M6 10,16 6,43 10,16 17,63 55 500
SP-M8 12,42 8,23 9,75 17,32 55 500
SP-0327 12,6 8,31 5 12,7 55 500
SP-0476 16 12,09 5,31 12,8 55 500
