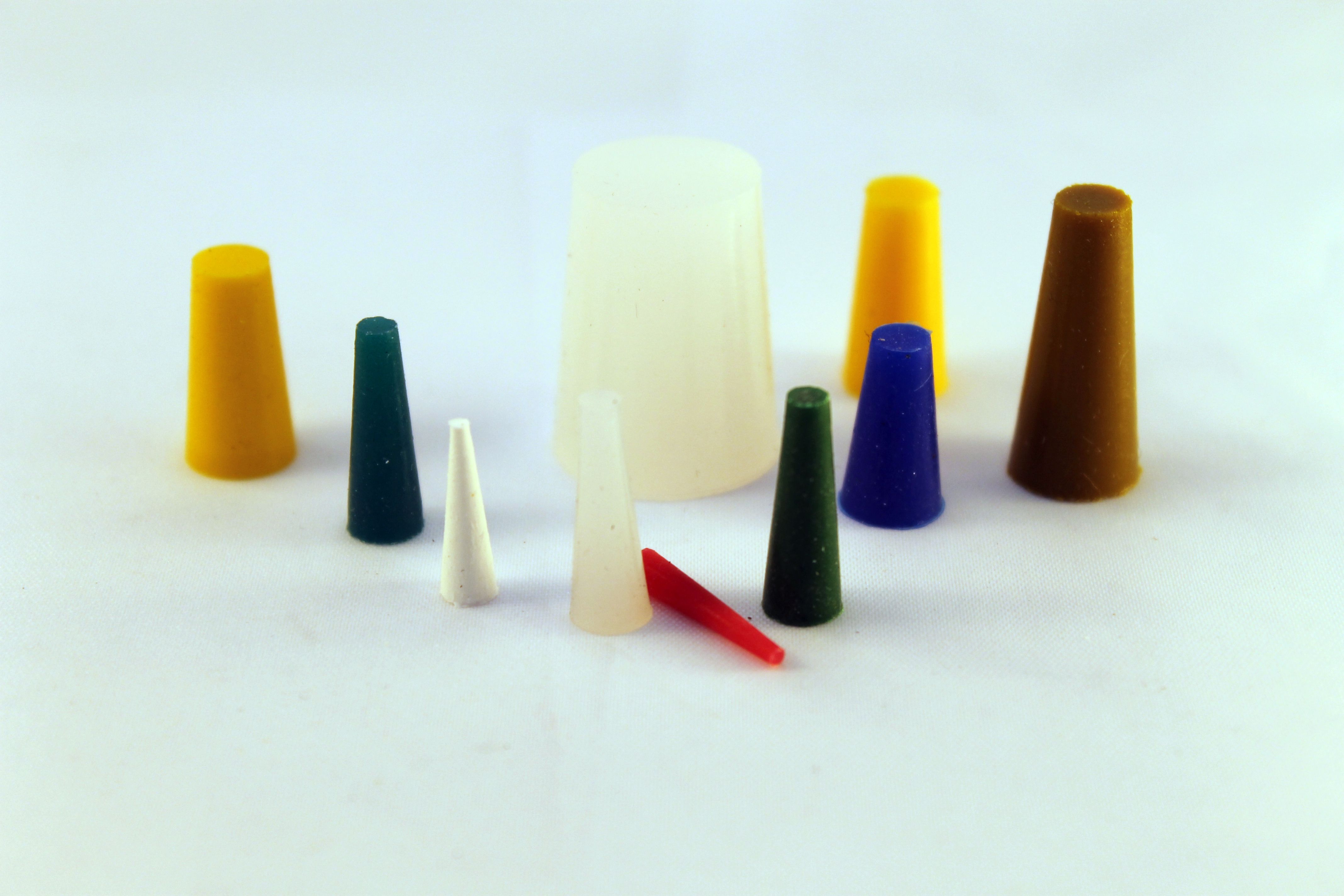

Silicone Cone Plugs -STP

Konische Silikon Stopfen / Cone Silicone Plug   STP-Serie

We can delivery following materials:

  • Silicone Rubber        = STP-xxxx-xxxx

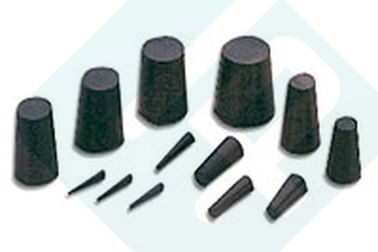

  • EPDM                         = ETP-xxxx-xxxx
  • Neopren                      = NTP-xxxx-xxxx



  • Tapered to fit a variety of hole diameters
  • Compressible for better sealling of both threaded and non-threaded holes
  • Ideal for sand blasting
  • excellent chemical and hydrocarbon resistance







Typical Applications:

Used as a plug in both threaded and non-threaded holes and in combination with hardware to seal off large cavities.

Helpful Hints:

  • Make sure that the major diameter of the plug is at least 15% larger than the hole diameter. The minor diameter should be at least 15% smaller than the hole diameter.
  • Silicone Cone Plugs ( max 315°C )  are not recommended for prolonged exposure to intense heat.

Product Description:

Our Silicone Cone Plug product line is an economical substitute for our ETP product line for general plugging applications. With many sizes available, holes from 1,60 mm to 88,4 mm in diameter can easily be plugged. Our high temperature Silicone is specially formulated to resist chemical attack and ensure reusability and economy during masking.

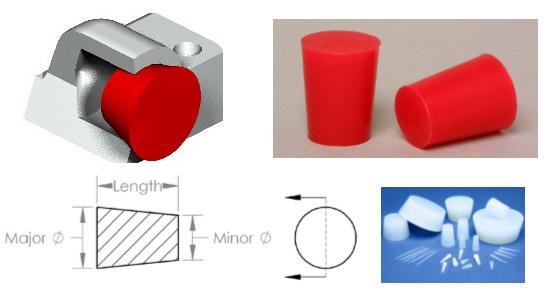

All dimension in mm ZG-Konischer Stopfen STP



Standard color ist clear / transluzenz , other color by request

Get a sample or offer

Part No. Metric / UNF Werkstoff A (mm) B (mm) L (mm) PCS/BAG
STP-0063-0625 Silicone 1,6 0,41 15,88 1000
STP-0078-0750 M2 Silicone 1,98 0,51 19,05 1000
STP-0078-1000 M2 Silicone 1,98 0,51 25,4 1000
STP-0100-0625 Silicone 2,54 0,81 15,88 1000
STP-0100-1000 Silicone 2,54 0,81 25,4 1000
STP-0125 M3 Silicone 3,18 0,79 15,88 1000
STP-0125-0625 M3 Silicone 3,18 1,6 15,88 1000
STP-0146-0276 Silicone 3,7 3,4 7 1000
STP-0177-0591 Silicone 4,5 1,5 15,01 1000
STP-0187-0394 M3, M4 Silicone 4,75 2,79 10,01 1000
STP-0187-0625 M3, M4 Silicone 4,75 1,6 15,88 1000
STP-0187-0750 M3, M4 Silicone 4,75 1,6 19,05 1000
SP-0187-1000 M3, M4 Silicone 4,75 1,6 25,4 1000
STP-0188-2200 M4 Silicone 4,78 1,19 55,88 1000
STP-0197-1100 Silicone 5 1,19 27,89 1000
STP-0200-0750 Silicone 5,08 1,6 19,05 1000
STP-0216-1500 M3,M4,M5 Silicone 5,49 1,19 38,1 1000
STP-0218-0250 Silicone 5,54 4,7 6,35 1000
STP-0250-0750 M5,M6, 1/4" Silicone 6,35 3,18 19,05 1000
STP-0250-1000 M5,M6, 1/4" Silicone 6,35 3,18 25,4 1000
STP-0276-0630 Silicone 7 5 16 1000
STP-0276-0787 Silicone 7 3 19,99 1000
STP-0276-0984 Silicone 7,01 3 24,99 1000
STP-0279-0984 Silicone 7,09 0,41 24,99 1000
STP-0315-0787 Silicone 8 3,99 19,99 1000
STP-0343-0625 M7, M8, 5/8" Silicone 8,71 4,78 15,88 1000
STP-0343-0750 M7, M8, 5/8" Silicone 8,71 4,78 19,05 1000
STP-0343-1000 M7, M8, 5/8" Silicone 8,71 4,78 25,4 1000
STP-0354-0984 Silicone 8,99 4,5 24,99 1000
STP-0375-0500 M8, 5/8" Silicone 9,53 6,35 12,7 500
STP-0375-0750 M8, 5/8" Silicone 9,53 6,35 19,05 500
STP-0375-1000 M8, 5/8" Silicone 9,53 6,35 25,4 500
STP-0375-1250 M8, 5/8" Silicone 9,53 3,18 31,75 500
STP-0393-0787 Silicone 9,98 6 19,99 500
STP-0394-1000 Silicone 10 5 25,4 500
STP-0394-1969 Silicone 10 4 50 250
STP-0394-1890 Silicone 10,01 5 48,01 500
STP-0395-1969 Silicone 10,03 5 50,01 500
STP-0433-0748 M10, 3/8" Silicone 11 8 19 500
STP-0433-1063 M10, 3/8" Silicone 11 8 27 500
STP-0437-1000 M10, 3/8" Silicone 11,1 6,35 25,4 500
STP-0438-0688 M10, 3/8" Silicone 11,13 8,74 17,48 500
STP-0438-0748 M10, 3/8" Silicone 11,13 8,99 19 500
STP-0469-0813 M10, 3/8" Silicone 11,91 8,74 20,65 500
STP-0472-0748 M10, 3/8" Silicone 11,99 8,99 19 500
STP-0472-1000 M10, 3/8" Silicone 11,99 8,99 25,4 500
STP-0472-2000 M10, 3/8" Silicone 11,99 6,02 50,8 500
STP-0473-0787 M10, 3/8" Silicone 12,01 7,9 19,99 500
STP-0487-0748 M10, 3/8" Silicone 12,37 8,99 19 500
STP-0492-0787 M10, 3/8" Silicone 12,5 10 20 500
STP-0500-0813 M10, 3/8" Silicone 12,7 7,92 20,65 250
STP-0500-1000 M10, 3/8" Silicone 12,7 7,9 25,4 250
STP-0500-2000 M10, 3/8" Silicone 12,7 3,2 50,8 250
STP-0512-0984 Silicone 13 8,99 24,99 250
STP-0512-1125 Silicone 13 7,95 28,58 250
STP-0562-1000 M10,M12,M14 7/16",1/2",9/16" Silicone 14,27 7,95 25,4 250
STP-0562-1125 M10,M12,M14 7/16",1/2",9/16" Silicone 14,27 7,95 28,58 250
STP-0563-1000 M10,M12,M14 7/16",1/2",9/16" Silicone 14,3 9,53 25,4 250
STP-0590-1000 Silicone 14,99 9,98 25,4 250
STP-0591-0787 M14, M16 1/2",9/16" Silicone 15,01 11 19,99 250
STP-0594-1000 Silicone 15,09 10,31 25,4 250
STP-0625-0813 M14, M16 9/16",5/8" Silicone 15,88 11,1 20,65 250
STP-0625-0875 M14, M16 9/16",5/8" Silicone 15,88 11,13 22,23 250
STP-0625-1000 M14, M16 9/16",5/8" Silicone 15,88 12,7 25,4 250
STP-0656-1000 M16, 5/8 Silicone 16,66 12,7 25,4 250
STP-0669-1000 Silicone 16,99 13 25,4 250
STP-0687-0787 M14, M16, M18 5/8" Silicone 17,45 14 19,99 250
STP-0687-1000 M14, M16, M18 5/8" Silicone 17,45 11,13 25,4 250
STP-0689-1000 M14, M16, M18 5/8" Silicone 17,5 10,7 25,4 250
STP-0709-0787 Silicone 18,01 14 19,99 250
STP-0748-1000 M18, M20 3/4 Silicone 19 14,27 25,4 100
STP-0750-0562 M18, M20 3/5 Silicone 19 14,3 14,27 250
STP-0787-1000 M20, 3/4" Silicone 19,99 15,88 25,4 100
STP-0797-0984 Silicone 20,24 13,67 24,99 200
STP-0800-0625 Silicone 20,32 15,88 15,88 100
STP-0812-1000 Silicone 20,62 15,88 25,4 100
STP-0827-1000 Silicone 21,01 16 25,4 100
STP-0925-0750 M22, 7/8" Silicone 23,5 19,05 19,05 100
STP-0925-1000 M22, 7/8" Silicone 23,5 19,05 25,4 100
STP-0938-1000 M22, 7/8" Silicone 23,83 18,26 25,4 100
STP-0945-0750 M22, 7/8" Silicone 24 19,2 19,05 100
STP-0945-1000 M22, 7/8" Silicone 24 19,2 25,4 100
STP-0946-1181 M22, 7/8" Silicone 24,03 18,01 30 100
STP-0990-0795 Silicone 25,15 22,4 20,19 100
STP-0990-0885 Silicone 25,15 19,99 22,48 100
STP-1000-1000 M22, M24, 1" Silicone 25,4 19,84 25,4 100
STP-1004-0472 M22, M24, 1" Silicone 25,5 22 12 100
STP-1024-0795 Silicone 26,01 22,35 20,19 100
STP-1024-1000 Silicone 26,01 19,99 25,4 100
STP-1062-0984 Silicone 26,97 22 24,99 100
STP-1063-1000 M27 Silicone 27 23,01 25,4 100
STP-1100-1000 M30, 1 1/4" Silicone 27,94 23,83 25,4 100
STP-1102-2000 M30, 1 1/4" Silicone 27,99 19,05 50,8 100
STP-1181-1000 Silicone 30 27,79 25,4 100
STP-1220-1181 Silicone 30,99 24,99 30 100
STP-1250-1000 M33, 1 1/4" Silicone 31,75 26,19 25,4 100
STP-1313-1000 M33, 1 1/4", 3/8" Silicone 33,35 27 25,4 100
STP-1338-1000 Silicone 33,99 27 25,4 100
STP-1438-1000 M36, 1 3/8" Silicone 36,53 30,18 25,4 100
STP-1456-1000 Silicone 36,98 30,18 25,4 100
STP-1496-1378 Silicone 38 30,99 35 50
STP-1531-1000 M39, 1 1/2" Silicone 38,89 31,75 25,4 50
STP-1614-1000 Silicone 41 33,02 25,4 50
STP-1615-1378 Silicone 41,02 34,01 35 50
STP-1625-1000 M39, M42, 1 1/2" Silicone 41,28 33,35 25,4 50
STP-1688-1000 M42 Silicone 42,88 35,71 25,4 50
STP-1693-1000 M42, MM45 Silicone 43 35,99 25,4 50
STP-1732-1575 Silicone 43,99 36 40,01 50
STP-1750-1000 M48 Silicone 44,45 37,31 25,4 50
STP-1772-1000 Silicone 45,01 37,01 25,4 50
STP-1813-1000 Silicone 46,05 38,1 25,4 50
STP-1929-1575 Silicone 49 41 40,01 50
STP-1969-1000 Silicone 50,01 41,28 25,4 50
STP-2063-1000 M56 Silicone 52,4 44,45 25,4 25
STP-2086-1000 Silicone 52,98 44,96 25,4 25
STP-2165-1575 Silicone 54,99 46,99 40,01 25
STP-2203-1000 M56 Silicone 55,96 47,63 25,4 25
STP-2362-1772 Silicone 59,99 50 45,01 25
STP-2469-1000 M64 Silicone 62,71 50,01 25,4 25
STP-2480-1000 M50, M52 Silicone 62,99 50,01 25,4 25
STP-2500-1000 M64 Silicone 63,5 53,98 25,4 25
STP-2688-1000 Silicone 68,28 57,94 25,4 25
STP-2953-1375 Silicone 75,01 61,93 34,93 25
STP-3500-1500 Silicone 88,9 76,2 38,1 10
STP-3543-1535 Silicone 89,99 75,01 38,99 10
STP-4000-1500 Silicone 101,6 82,55 38,1 10
STP-4055-1535 Silicone 103 82,98 38,99 10
STP-5000-2000 Silicone 127 88,9 50,8 5
